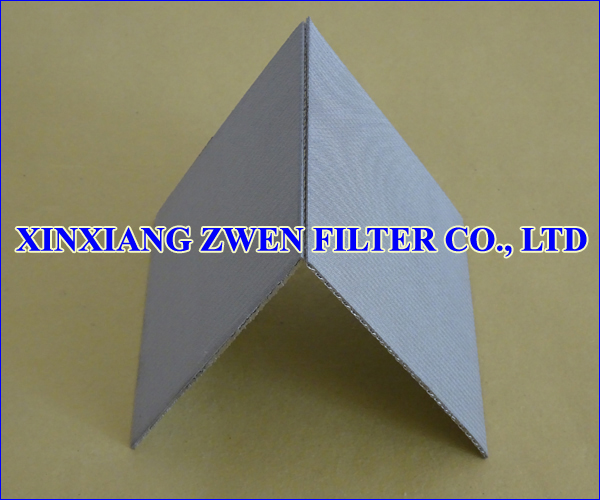

Multilayer Sintered Mesh
Multilayer Sintered Mesh Technical Parameter
Raw Material: SS 316L, SS 304
Filter Rating Range: 0.5 Micron ~ 2000 Microns
Filter Efficiency: > 99.99 %
Number of Layers: 2 Layers ~ 20 Layers
Operation Temperature: ≤ 816 ℃
Length: ≤ 1200 mm
Width: ≤ 1000 mm
Regular Size: 500 mm*500 mm,500 mm*1000 mm,1000 mm*1000, 1200 mm*1000 mm or others
Thickness: 0.5 mm,1 mm,1.5 mm,2 mm,3 mm,5 mm or others
Multilayer Sintered Mesh Feature
1. Multilayer sintered mesh is made from multilayer wire mesh
2. Multilayer sintered mesh is sintered in a high temperature vacuum furnace
3. Multilayer sintered mesh is a good filter media for surface filtration
4. Multilayer sintered mesh is good for backwash because the pore passage of wire mesh aperture is very smooth
5. Multilayer sintered mesh has uniform pore size distribution
6. High compression strength
7. High mechanical strength
8. High rigidity
9. High abrasion resistance
10. Good durability against most liquids, gases and aggressive steam
11. High temperature resistance
12. High filter rating accuracy
13. High filter efficiency
14. Good corrosion resistance
15. Washable and Cleanable
17. Long service life
18. Easy to be welded, fabricated
19. Easy to be cutted into different shapes, such as circular, sheet
20. Easy to be made into different style, such as tube style, conical style, pleated style
Polyester filtration, polymer filtration, high viscosity filtration, fuels and lubricants filtration, oil filtration, steam filtration, high temperature gas filtration, high temperature liquid filtration, steam filtration, potable and process water filtration, beverages filtration, detergent filtration, solvents filtration, pharmaceutical industry, chemical industry, chemical fiber industry, food industry
XINXIANG ZWEN FILTER CO.,LTD produces sintered mesh (5 layer sintered mesh, multilayer sintered mesh, perforated sheet sintered mesh, sintered mesh laminate, sintered mesh panel, sintered mesh plate, sintered mesh sheet), sintered wire cloth (5 layer sintered wire cloth, multilayer sintered wire cloth, perforated sheet sintered wire cloth, sintered wire cloth laminate, sintered wire cloth panel, sintered wire cloth plate, sintered wire cloth sheet), sintered wire mesh (5 layer sintered wire mesh, multilayer sintered wire mesh, perforated sheet sintered wire mesh, sintered wire mesh laminate, sintered wire mesh panel, sintered wire mesh plate, sintered wire mesh sheet), and sintered metal wire mesh.
XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.
XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.
XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.
XINXIANG ZWEN FILTER CO.,LTD Key Clients: Parker, GKN, SIEMENTS, MAHLE.
