Sintered Wire Coth

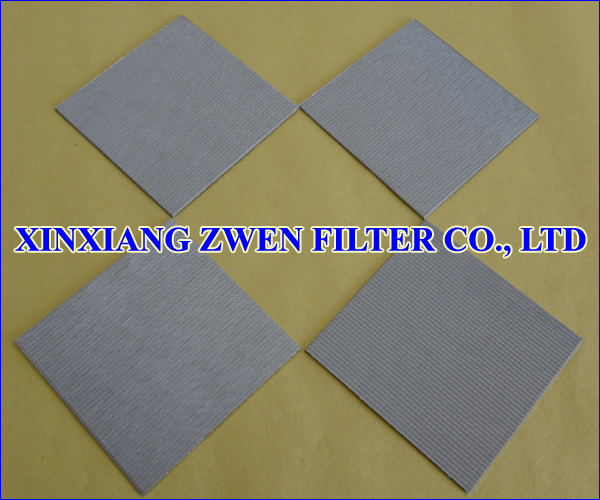

Sintered Wire Cloth

Sintered Wire Cloth

Sintered Wire Cloth Technical Parameter

Raw Material: SS 316L, SS 304

Filter Rating Range: 0.5 Micron ~ 2000 Microns

Filter Efficiency: > 99.99 %

Number of Layers: 2 Layers ~ 20 Layers

Operation Temperature:  816

Length:  1200 mm

Width:  1000 mm

Regular Size: 500 mm*500 mm,500 mm*1000 mm,1000 mm*1000, 1200 mm*1000 mm or others

Thickness: 0.5 mm,1 mm,1.5 mm,2 mm,3 mm,5 mm or others


Sintered Wire Cloth Feature

1. Sintered wire cloth is made from multilayer wire cloth

2. Sintered wire cloth is sintered in a high temperature vacuum furnace

3. Sintered wire cloth is a good filter media for surface filtration

4. Sintered wire cloth is good for backwash because the pore passage of wire cloth aperture is very smooth

5. Sintered wire cloth has uniform pore size distribution

6. High compression strength

7. High mechanical strength

8. High rigidity

9. High abrasion resistance

10. Good durability against most liquids, gases and aggressive steam

11. High temperature resistance

12. High filter rating accuracy

13. High filter efficiency

14. Good corrosion resistance

15. Washable and Cleanable

16. Reusable

17. Long service life

18. Easy to be welded, fabricated

19. Easy to be cutted into different shapes, such as circular, sheet

20. Easy to be made into different style, such as tube style, conical style, pleated style


Application

Polyester filtration, polymer filtration, high viscosity filtration, fuels and lubricants filtration, oil filtration, steam filtration, high temperature gas filtration, high temperature liquid filtration, steam filtration, potable and process water filtration, beverages filtration, detergent filtration, solvents filtration, pharmaceutical industry, chemical industry, chemical fiber industry, food industry


About Us

XINXIANG ZWEN FILTER CO.,LTD  produces sintered mesh (5 layer sintered mesh, multilayer sintered mesh, perforated sheet sintered mesh, sintered mesh laminate, sintered mesh panel, sintered mesh plate, sintered mesh sheet), sintered wire cloth (5 layer sintered wire cloth, multilayer sintered wire cloth, perforated sheet sintered wire cloth, sintered wire cloth laminate, sintered wire cloth panel, sintered wire cloth plate, sintered wire cloth sheet), sintered wire mesh (5 layer sintered wire mesh, multilayer sintered wire mesh, perforated sheet sintered wire mesh, sintered wire mesh laminate, sintered wire mesh panel, sintered wire mesh plate, sintered wire mesh sheet), and sintered metal wire mesh.


XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.


XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.


XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.


XINXIANG ZWEN FILTER CO.,LTD Key Clients: Parker, GKN, SIEMENTS, MAHLE.
